Lift-off Preventers can be added to Avontus Designer to lock scaffold planks or decks securely in place.

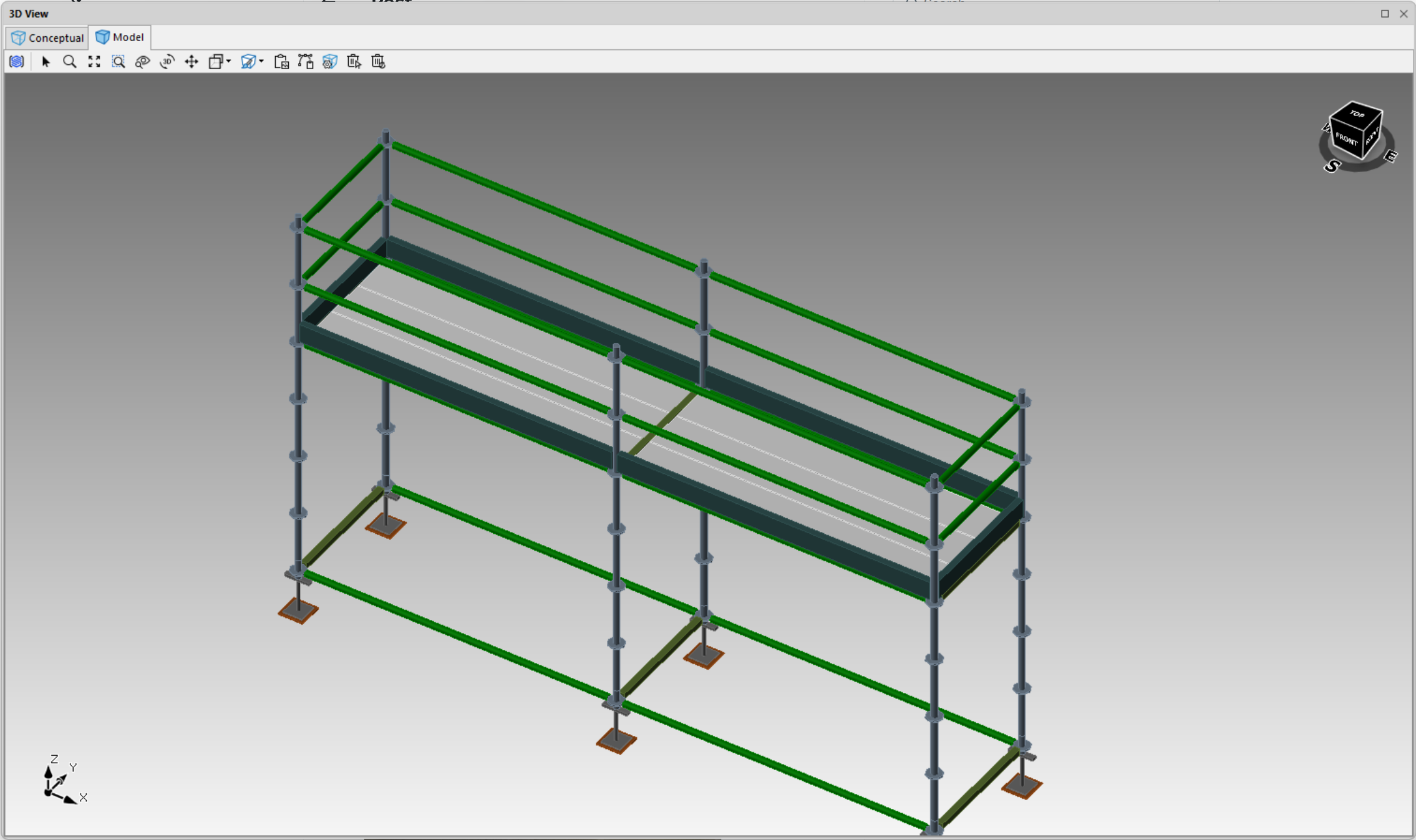

We shall add a Lift-Off Preventer to these bays.
To do this.

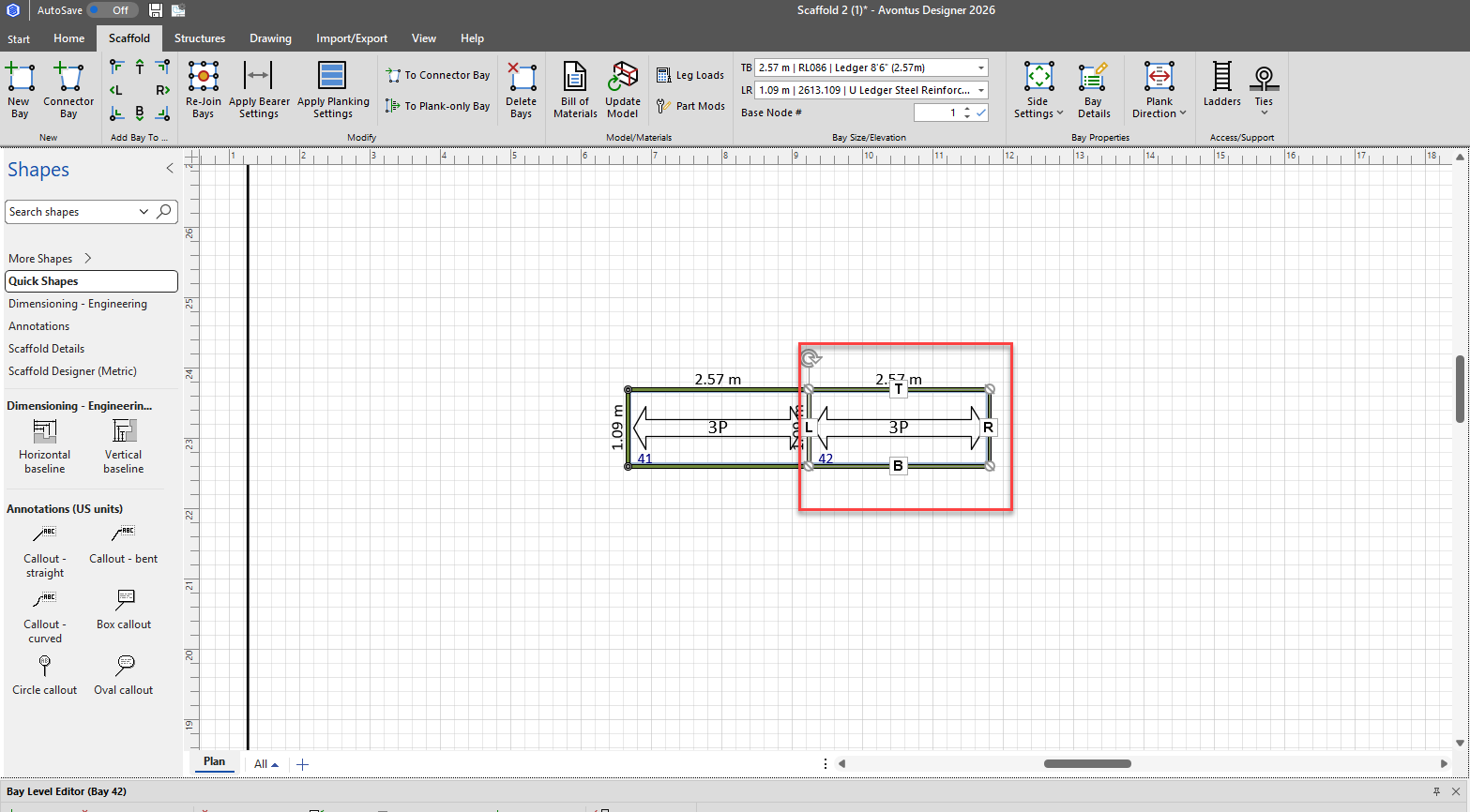

Select the Bay

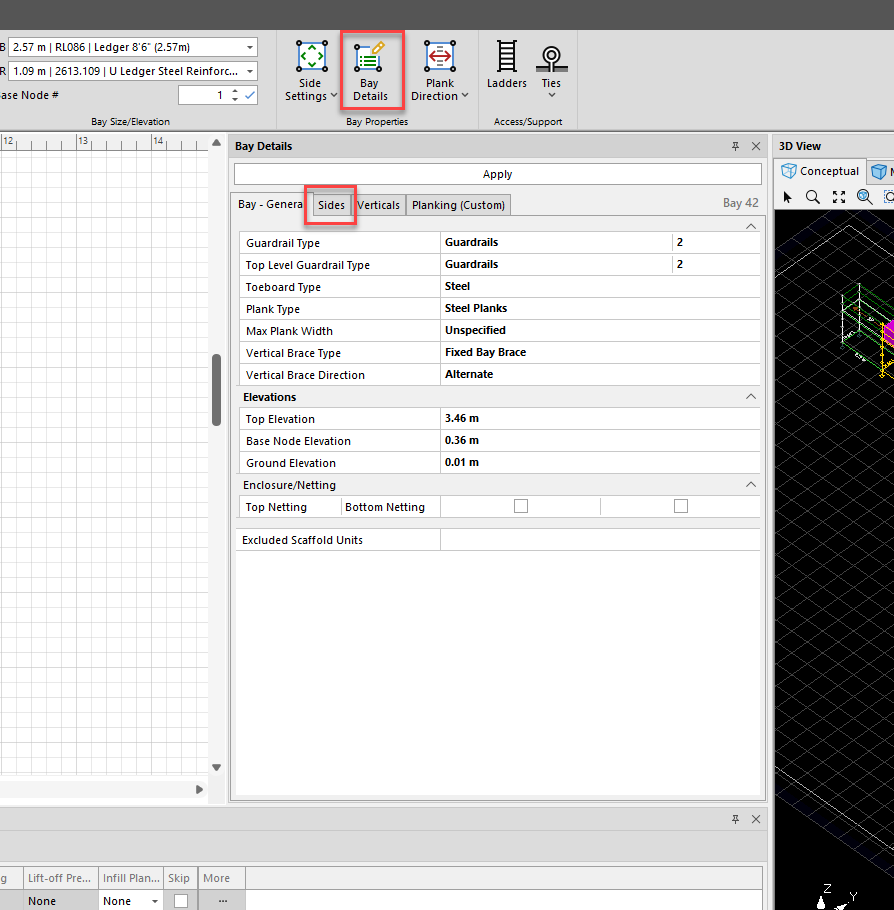

Select Bay Details, then Sides

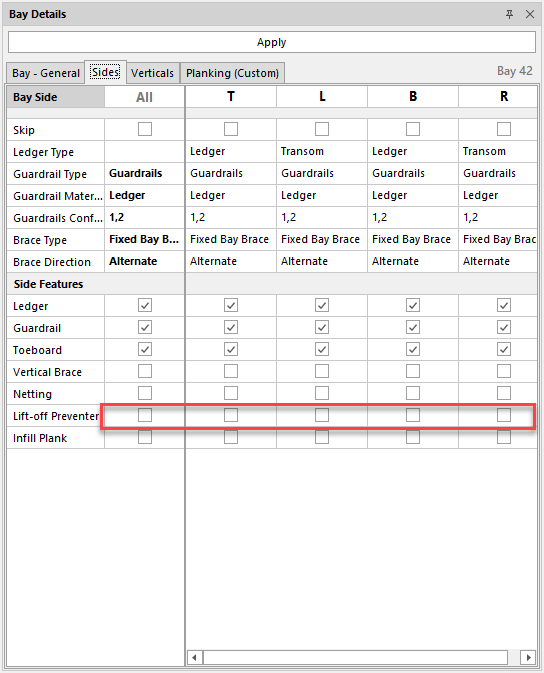

Check the relevant checkbox to insert the Lift-Off Preventer.

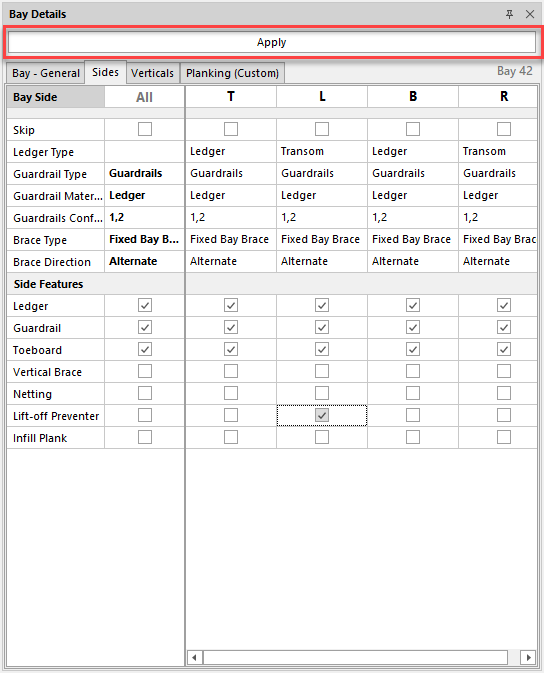

Click Apply

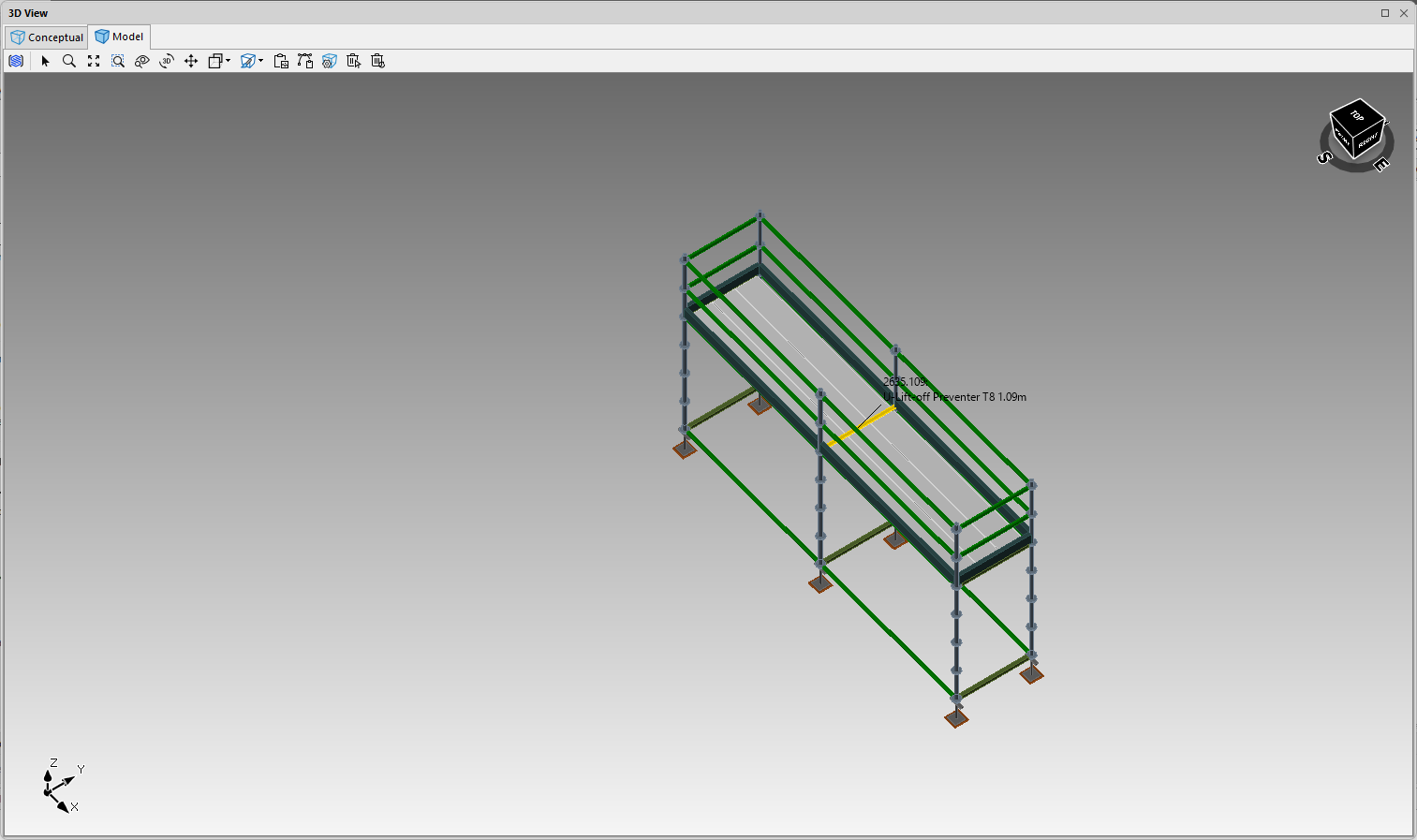

You can now see your Lift-off Preventer in the 3D view.

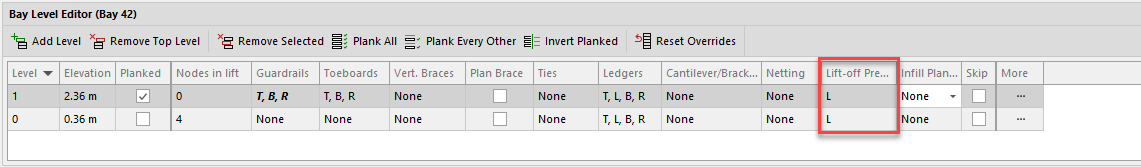

Note that you can also add a Lift-off Preventer via the Bay Level Editor.
